Aqua Illumination Axis Centrifugal Pump

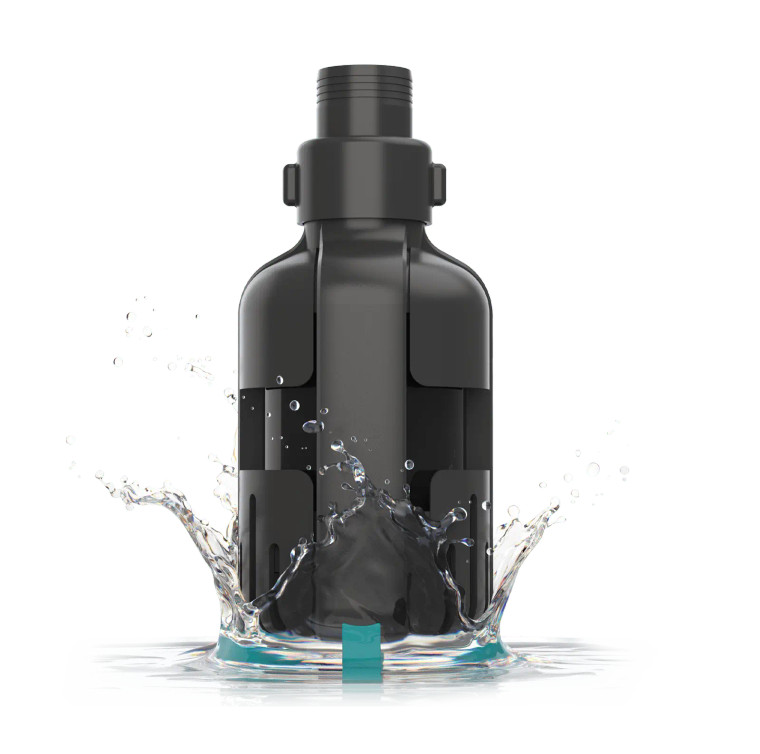

AquaIllumination Axis DC Return Pump

The AquaIllumination Axis is a compact, controllable DC return pump designed for modern freshwater and marine aquarium systems. Available in Axis 20, Axis 40 and Axis 90, the range provides efficient water movement, adjustable performance and a small footprint suitable for sumps, all-in-one aquariums and other circulation applications.

Its variable-speed DC design allows the pump output to be matched more closely to the aquarium, helping you achieve the flow rate and head pressure your system requires without running unnecessarily hard.

Key Features

• Variable-speed DC return pump
• Compact design for sumps and all-in-one aquariums
• Suitable for freshwater and marine systems
• Energy-efficient operation
• Adjustable flow performance
• Available in three sizes
• Strong head pressure for compact pump dimensions
• Ideal for return, circulation and equipment-feed applications

AquaIllumination Axis 20

The Axis 20 is designed for smaller aquariums and compact filtration systems.

• Maximum Flow Rate: approximately 700 L/h
• Maximum Head Height: approximately 1.5 m
• Maximum Power Consumption: 12W
• Recommended Aquarium Size: up to approximately 15 US gallons / 57 litres

Its small footprint makes it particularly useful for nano systems and compact all-in-one aquariums where space is limited.

AquaIllumination Axis 40

The Axis 40 provides increased flow and significantly greater head pressure for medium-sized aquarium systems.

• Maximum Flow Rate: approximately 1500 L/h
• Maximum Head Height: approximately 2.8 m
• Maximum Power Consumption: 20W
• Recommended Aquarium Size: up to approximately 40 US gallons / 150 litres

The Axis 40 is well suited to smaller sump-driven systems, reef aquariums and installations where the return pump needs to overcome additional plumbing height.

AquaIllumination Axis 90

The Axis 90 is the highest-output model in the range, designed for larger aquarium systems requiring greater circulation and head pressure.

• Maximum Flow Rate: approximately 3500 L/h
• Maximum Head Height: approximately 3 m
• Maximum Power Consumption: 40W
• Recommended Aquarium Size: up to approximately 90 US gallons / 340 litres

Its higher output makes it suitable for larger sumps, reef systems and installations with longer or more restrictive return plumbing.

Adjustable Performance

Because the Axis range uses variable-speed DC technology, flow can be adjusted to suit the aquarium rather than relying on a fixed-output pump.

This allows you to fine-tune circulation for:

• Aquarium return flow
• Sump turnover
• All-in-one filtration systems
• Reactors and auxiliary equipment
• Freshwater or marine setups

The AquaIllumination Axis range is a strong choice for aquarists looking for a compact, efficient and controllable return pump with multiple sizes to suit different aquarium systems.
